Details

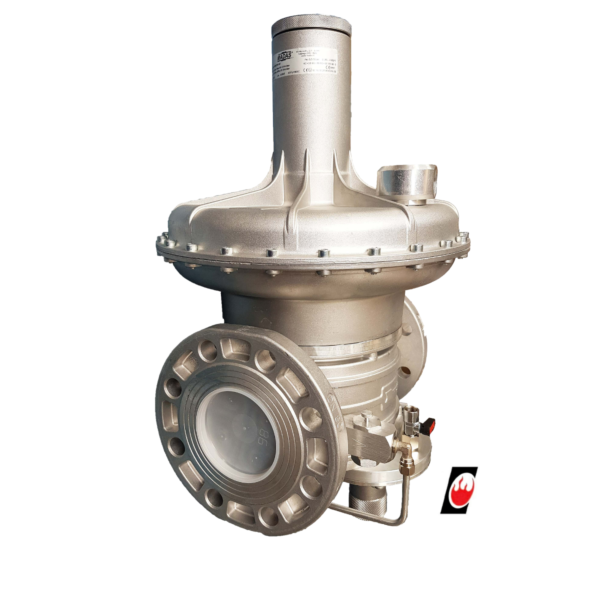

Madas 5Bar DN80 flange
Inlet max P1 5 bar, OPSO 4-110mbr,UPSO 7-15mbr,Diff relief 15-50mbr
Outlet P2 13-27mbr
Outlet spring range
ID 6237, MO-1100, 13-22mbr,
ID 6237, MO-1200, 22-58mbr,
ID 6238, MO-1400, 50-130mbr,
ID 6239, MO-1800,
MO-1400 + MO-1800, 110-200mbr, 2 Springs 1 inside the other
OPSO Springs
ID1583, MO-0880, 40 - 110Mbr
ID6225, MO-0890, 90 - 210Mbr
ID3045, MO-0995, 180 - 350Mbr
UPSO springs
ID3117, MO-0153, 7-15Mbr
ID6228, MO-0204, 15-25Mbr
ID6234,MO-0214, 25-70Mbr
ID3021, MO-0215, 70-110Mbr
Differential Releif springs
ID6223, MO-1320, 15-50Mbr
ID1944, MO-2550, 20-100Mbr
Warehouse Location: J1
More Information
| SKU | ID6040 |
|---|---|
| Brand | Madas |
| Gas Type | LPG, Natural Gas, Air |
| Maximum inlet pressure | up to 100mbar, up to 300mbar, up to 350mbar, up to 0.5bar, up to 1 bar, up to 2 bar, up to 5 bar |
| Nominal size | DN80mm |
| Overpressure protection type | OPSO UPSO RELIEF |
Specifications
|
id6040 | 2.3 MB | Download |
