Details
Bin Location E8
Max operation Pressure 1.2 bar(abs)
Max operation Temperature 60c

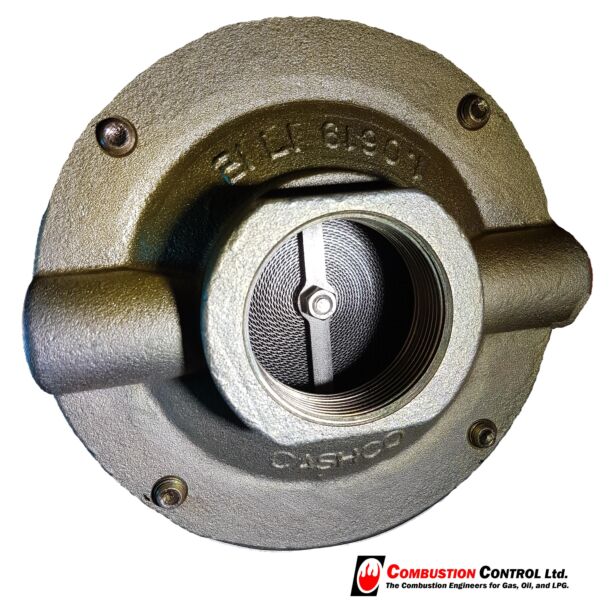

When properly specified and installed, the Series 25000/26000
Bi-Directional Detonation Arresters are designed to stop deflagrations
(subsonic), stable deflagrations (sonic) and overdriven/unstable (transitional)
detonations. The proven ability to withstand this variety of flame fronts
is a key characteristic of a detonation flame arrester. These arresters
are bi-directional, able to stop a flame approaching from either direction
in the piping system. The severity of the service conditions that the
arrester must withstand is demonstrated by the fact that the stable detonation
velocity of a flame front in a 4.3% propane/air mixture is 5,800 ft./sec
Max operation Pressure 1.2 bar(abs)
Max operation Temperature 60c
When properly specified and installed, the Series 25000/26000
Bi-Directional Detonation Arresters are designed to stop deflagrations
(subsonic), stable deflagrations (sonic) and overdriven/unstable (transitional)
detonations. The proven ability to withstand this variety of flame fronts
is a key characteristic of a detonation flame arrester. These arresters
are bi-directional, able to stop a flame approaching from either direction
in the piping system. The severity of the service conditions that the
arrester must withstand is demonstrated by the fact that the stable detonation
velocity of a flame front in a 4.3% propane/air mixture is 5,800 ft./sec
More Information
| SKU | ID5700 |
|---|
